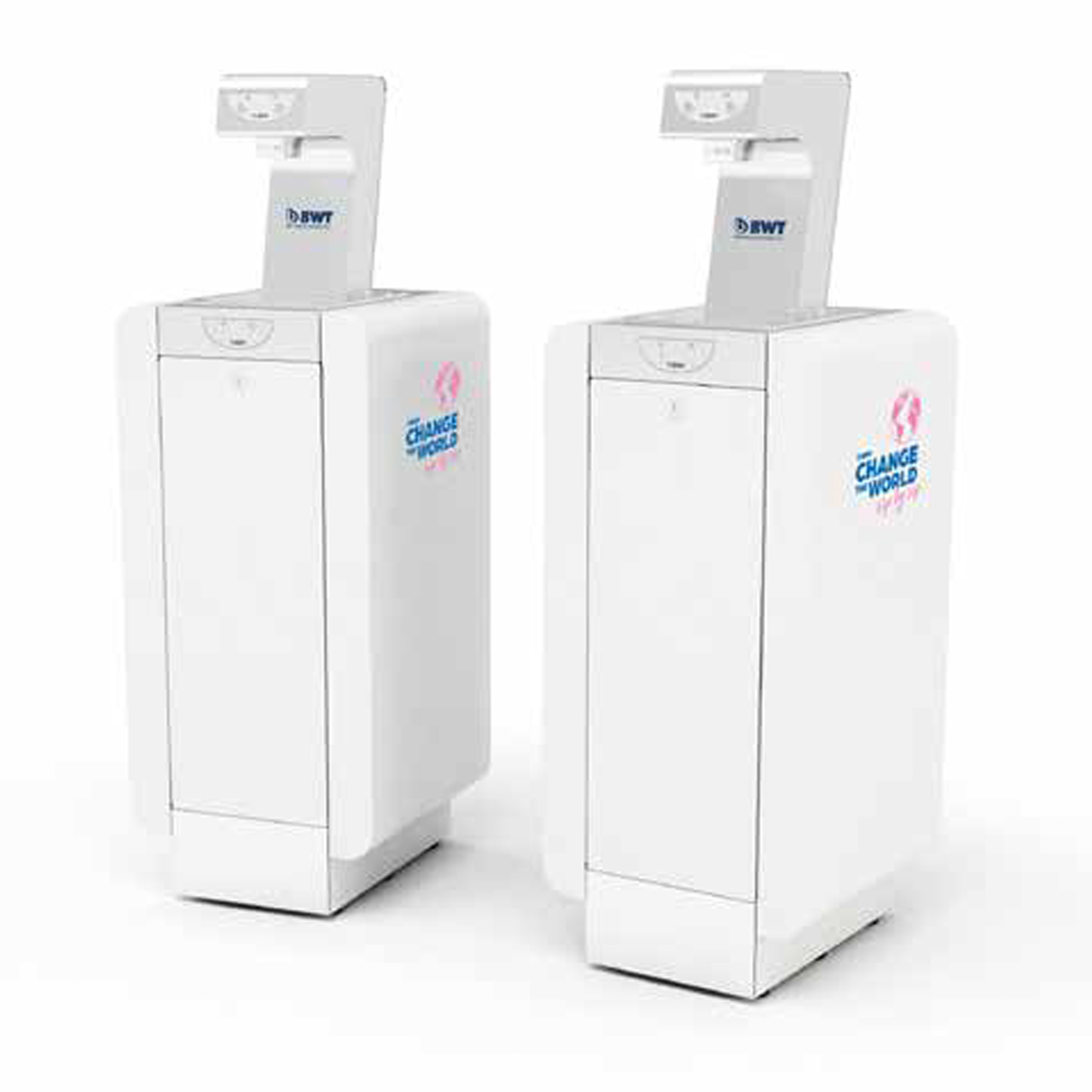

AQA drink UNIVERSITY 35

Request more information
: 125592573
  • Ideal for offices, schools, sport centres and small canteens
  • Cold and sparkling water
  • Capacity: 35 l/h
  • Space for filter and CO2 cylinder inside the cabinet

Product Benefits

guarantee icon

Design

The AQA drink UNIVERSITY 35 is characterised by high performance together with a modern, elegant design: the stainless steel of the column, its sinuous curves and the painted steel of the frame combine to perfection in a simply stunning dispenser. It has surfaces without edges, making it suitable and comfortable for use in public areas.
Registration Icon

Technical features

Water cooling technology with the use of an ice bank system ensures cold and sparkling water up to 35 l/h, with low energy consumption.
The water dispenser is silent and can be placed near classrooms, offices and meeting rooms.
service icon

Installation

The installation is very simple: just a simple connection to the water and electricity supply using the supplied kit is needed. Thanks to a 5 litre waste water tank installed on the back of the dispenser it does not need to be connected to the drain.

Product details

BWT AQA drink UNIVERSITY 35 is a standalone dispenser characterised by a pleasant, modern and space-saving design. It guarantees an impressive water supply by mains water cooling technology with the use of an ice bank system. The water is dispensed by using vandal-proof steel buttons that are located in two positions: either on the column or on the body of the dispenser, so that they can also be used by handicapped persons.

AQA drink UNIVERSITY 35 has a design that fits anywhere because it is beautiful, sophisticated and contemporary. It transforms an office, a university corridor or a waiting room with its presence alone, thanks to its rounded, minimal silhouette, the contrast between painted metal and stainless steel, and the large customisable surfaces. It can dispense 2 types of water: cold and sparkling. Inside its cabinet there is space for a BWT AQA drink mineralization and filtration and a CO2 cylinder up to 10 kg. In addition, periodic disinfection and cleaning can be performed using BWT’s EasyCare system. There is also a 5-litre drain water container at the back.

Technical details

Item n° - WD 125592573
C - Cold  ✓
A - Ambient  -
S - Sparkling  ✓
H - Hot  -
Cooling capacity l/h (∆t=10°C) 35
Number of people (approx.) 10/40
Cooling tech­nology Ice bank 9 l
Cooling control -2 °C to +7 °C Thermostat
Recir­cu­la­tion pump/stirrer Recirculation pump
Compressor power 124,3 W
Refrig­erant R290
Carbon­ator capacity 1,02 l
Power supply 230 V / 50-60 Hz
Maximum power consump­tion 420 W
Pump type 200 l/h palette
Ø water inlet pipe 8 mm
Ø CO2 inlet pipe 6 mm
Maximum CO2 inlet pres­sure 4,5 bar
Water inlet pres­sure (min./max.) 1,5 / 3,5 bar
Dimen­sions WD (WxDxH) mm 460x590x1400
Weight kg (approx.) 52
Mate­rial of construc­tion Stainless steel / painted
Water selec­tion point Push buttons
